【型号规格】：SKTN-4-4N
【额定工作压力】：20MPA
【强度试验压力】：35MPA
【适用介质】：油、气、水
【介质温度】：0-300℃

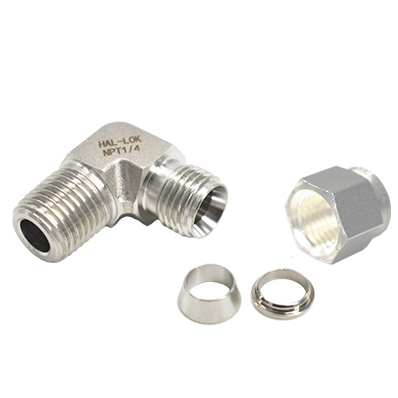

原材料为锻打六角原棒制做，双卡套为硬化处理，螺帽镀银处理，具有连接牢靠、耐压能力高、耐温性，密封性和反复性好、安装检修方便、工作安全可靠等特点. 适用于石油、化工、食品、船舶、冶金、能源、生物制药、分析仪器、实验室、半导体等行业，能与国际品牌互通互换。规格齐全、可非标定制 材质：SS304、SS316、SS316L以及其他特殊材质. 螺纹：NPT、BSP、BSPT、UNF、ISO等 |  |

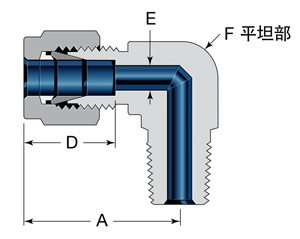

管外径 in. | NPT | 型号 | 尺寸,in | |||
|---|---|---|---|---|---|---|
A | D | E | F | |||
1/16 | 1/16 | SKTN-1-1N | 0.80 | 0.39 | 0.10 | 7/16 |
1/8 | SKTN-1-2N | |||||
1/8 | 1/16 | SKTN-2-1N | 0.98 | 0.55 | 0.14 | 7/16 |
1/8 | SKTN-2-2N | 0.98 | 7/16 | |||
1/4 | SKTN-2-4N | 1.02 | 1/2 | |||
| 3/16 | 1/8 | SKTN-3-2N | 1.05 | 0.59 | 0.17 | 1/2 |
1/4 | SKTN-3-4N | |||||
1/4 | 1/16 | SKTN-4-1N | 1.11 | 0.65 | 0.17 | 1/2 |
1/8 | SKTN-4-2N | 1.11 | 0.24 | 1/2 | ||
1/4 | SKTN-4-4N | 1.11 | 0.24 | 1/2 | ||
3/8 | SKTN-4-6N | 1.22 | 0.30 | 11/16 | ||
1/2 | SKTN-4-8N | 1.30 | 0.30 | 13/16 | ||
5/16 | 1/8 | SKTN-5-2N | 1.18 | 0.69 | 0.24 | 9/16 |
1/4 | SKTN-5-4N | 1.18 | 0.30 | 9/16 | ||
3/8 | SKTN-5-6N | 1.23 | 0.30 | 11/16 | ||
| 3/8 | 1/8 | SKTN-6-2N | 1.23 | 0.71 | 0.24 | 5/8 |
1/4 | SKTN-6-4N | 1.23 | 0.33 | 5/8 | ||
3/8 | SKTN-6-6N | 1.28 | 0.33 | 11/16 | ||
1/2 | SKTN-6-8N | 1.36 | 0.33 | 13/16 | ||
3/4 | SKTN-6-12N | 1.51 | 0.33 | 1 1/16 | ||
| 1/2 | 1/4 | SKTN-8-4N | 1.47 | 0.95 | 0.33 | 13/16 |
3/8 | SKTN-8-6N | 1.47 | 0.43 | 13/16 | ||
1/2 | SKTN-8-8N | 1.47 | 0.46 | 13/16 | ||
3/4 | SKTN-8-12N | 1.62 | 0.46 | 1 1/16 | ||
5/8 | 3/8 | SKTN-10-6N | 1.55 | 1.01 | 0.43 | 15/16 |
0.52 | ||||||
1/2 | SKTN-10-8N | 1.55 | 0.52 | 15/16 | ||
3/4 | SKTN-10-12N | 1.62 | 0.55 | 1 1/16 | ||
3/4 | 1/2 | SKTN-12-8N | 1.62 | 1.01 | 0.52 | 1 1/16 |
3/4 | SKTN-12-12N | 0.67 | ||||
7/8 | 3/4 | SKTN-14-12N | 1.81 | 1.07 | 0.67 | 1 3/8 |
1 | 3/4 | SKTN-16-12N | 1.98 | 1.28 | 0.67 | 1 3/8 |
1 | SKTN-16-16N | 0.93 | ||||
| 1 1/4 | 1 1/4 | SKTN-20-20N | 2.72 | 1.67 | 1.14 | 1 11/16 |
| 1 1/2 | 1 1/2 | SKTN-24-24N | 3.15 | 2.02 | 1.39 | 2 |
| 2 | 2 | SKTN-32-32N | 4.27 | 2.71 | 0.86 | 2 3/4 |
管外径 mm | NPT | 型号 | 尺寸,mm | |||
|---|---|---|---|---|---|---|
A | D | E | F | |||
3 | 1/8 | SKTN-3M-2N | 24.1 | 13.4 | 2.9 | 7/16 |
1/4 | SKTN-3M-4N | 25.1 | 1/2 | |||
4 | 1/8 | SKTN-4M-2N | 25.9 | 14.2 | 14.2 | 1/2 |
1/4 | SKTN-4M-4N | |||||
6 | 1/8 | SKTN-6M-2N | 27.5 | 15.8 | 5.3 | 1/2 |
1/4 | SKTN-6M-4N | 27.5 | 1/2 | |||
3/8 | SKTN-6M-6N | 30.3 | 11/16 | |||
1/2 | SKTN-6M-8N | 32.3 | 13/16 | |||
8 | 1/8 | SKTN-8M-2N | 29.3 | 16.7 | 5.3 | 9/16 |
1/4 | SKTN-8M-4N | 29.3 | 6.9 | 9/16 | ||
3/8 | SKTN-8M-6N | 31.1 | 6.9 | 11/16 | ||
1/2 | SKTN-8M-8N | 33.1 | 6.9 | 13/16 | ||
10 | 1/8 | SKTN-10M-2N | 32.0 | 17.7 | 5.3 | 11/16 |
1/4 | SKTN-10M-4N | 32.0 | 7.6 | 11/16 | ||
3/8 | SKTN-10M-6N | 32.0 | 8.4 | 11/16 | ||
1/2 | SKTN-10M-6N | 34.0 | 8.4 | 13/16 | ||
12 | 1/4 | SKTN-12M-4N | 36.5 | 23.3 | 7.6 | 13/16 |
3/8 | SKTN-12M-6N | 36.5 | 10.0 | 13/16 | ||
1/2 | SKTN-12M-8N | 36.5 | 10.0 | 13/16 | ||
3/4 | SKTN-12M-12N | 40.3 | 10.0 | 1 1/16 | ||
15 | 1/2 | SKTN-15M-8N | 38.5 | 24.9 | 12.4 | 15/16 |
16 | 3/8 | SKTN-16M-6N | 38.5 | 24.9 | 10.0 | 15/16 |
1/2 | SKTN-16M-8N | 38.5 | 12.4 | 15/16 | ||
3/4 | SKTN-16M-12N | 40.3 | 13.2 | 1 1/16 | ||
18 | 1/2 | SKTN-18M-8N | 40.3 | 24.9 | 12.4 | 1 1/16 |
3/4 | SKTN-18M-12N | 15.6 | ||||
20 | 1/2 | SKTN-20M-8N | 45.1 | 26.5 | 12.4 | 1 3/8 |
3/4 | SKTN-20M-12N | 15.6 | ||||
22 | 3/4 | SKTN-22M-12N | 45.1 | 26.5 | 15.6 | 1 3/8 |
1 | SKTN-22M-16N | 18.8 | ||||
25 | 3/4 | SKTN-25M-12N | 49.6 | 31.8 | 16.4 | 1 3/8 |
1 | SKTN-25M-16N | 22.3 | ||||
30 | 1 1/4 | SKTN-30M-20N | 70.4 | 40.1 | 26.7 | 1 11/16 |
32 | 1 1/4 | SKTN-32M-32N | 72.8 | 42.5 | 28.3 | 2 |
38 | 1 1/2 | SKTN-38M-32N | 84.5 | 49.9 | 34.2 | 2 3/4 |
