【型号规格】：SKTT-6
【额定工作压力】：20MPA
【强度试验压力】：35MPA
【适用介质】：油、气、水
【介质温度】：0-300℃

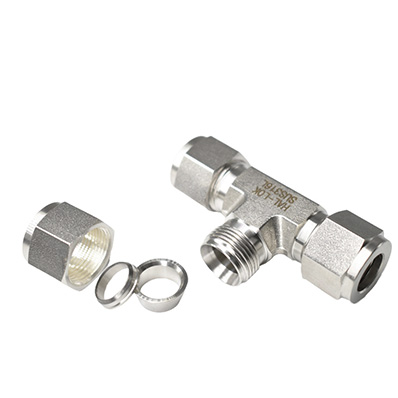

原材料为锻打六角原棒制做，双卡套为硬化处理，螺帽镀银处理，具有连接牢靠、耐压能力高、耐温性，密封性和反复性好、安装检修方便、工作安全可靠等特点. 适用于石油、化工、食品、船舶、冶金、能源、生物制药、分析仪器、实验室、半导体等行业，能与国际品牌互通互换。规格齐全、可非标定制 材质：SS304、SS316、SS316L以及其他特殊材质. |  |
管外径 in. | 型号 | 尺寸,in | ||||
|---|---|---|---|---|---|---|
L | Lx | D | E | F | ||
1/8 | SKTT-2 | 1.76 | 0.88 | 0.50 | 0.09 | 3/8 |
3/16 | SKTT-3 | 1.92 | 0.96 | 0.54 | 0.12 | 7/16 |
1/4 | SKTT-4 | 2.12 | 1.06 | 0.60 | 0.19 | 1/2 |
5/16 | SKTT-5 | 2.34 | 1.17 | 0.64 | 0.25 | 5/8 |
3/8 | SKTT-6 | 2.40 | 1.20 | 0.66 | 0.28 | 5/8 |
1/2 | SKTT-8 | 2.84 | 1.42 | 0.90 | 0.41 | 13/16 |
5/8 | SKTT-10 | 3.06 | 1.53 | 0.96 | 0.50 | 1 |
3/4 | SKTT-12 | 3.14 | 1.57 | 1.02 | 0.62 | 1 1/16 |
7/8 | SKTT-14 | 3.52 | 1.76 | 1.02 | 0.72 | 1 3/8 |
1 | SKTT-16 | 3.86 | 1.93 | 1.23 | 0.88 | 13/8 |
11/8 | SKTT-18 | 4.34 | 2.17 | 1.23 | 0.97 | 1 11/16 |
11/4 | SKTT-20 | 5.34 | 2.67 | 1.62 | 1.09 | 1 11/6 |
11/2 | SKTT-24 | 6.20 | 3.10 | 1.97 | 1.34 | 2 |
2 | SKTT-32 | 8.44 | 4.22 | 2.66 | 1.81 | 2 3/4 |
管外径 mm | 型号 | 尺寸,mm | ||||
|---|---|---|---|---|---|---|
L | Lx | D | E | F | ||
2 | SKTT-2M | 44.7 | 22.3 | 12.9 | 1.7 | 3/8 |
3 | SKTT-3M | 44.7 | 22.3 | 12.9 | 2.4 | 3/8 |
4 | SKTT-4M | 50.8 | 25.4 | 13.7 | 2.4 | 1/2 |
6 | SKTT-6M | 53.9 | 27.0 | 15.3 | 4.8 | 1/2 |
8 | SKTT-8M | 59.7 | 29.9 | 16.2 | 6.4 | 5/8 |
10 | SKTT-10M | 63.0 | 31.5 | 17.2 | 7.9 | 11/16 |
12 | SKTT-12M | 72.0 | 36.0 | 22.8 | 9.5 | 13/16 |
14 | SKTT-14M | 77.6 | 38.8 | 24.4 | 11.1 | 1 |
15 | SKTT-15M | 77.6 | 38.8 | 24.4 | 11.9 | 1 |
16 | SKTT-16M | 77.6 | 38.8. | 24.4 | 12.7 | 1 |
18 | SKTT-18M | 79.6 | 39.8 | 24.4 | 15.1 | 1 1/16 |
20 | SKTT-20M | 89.3 | 44.6 | 26.0 | 15.9 | 1 3/8 |
22 | SKTT-22M | 89.3 | 44.6 | 26.0 | 18.3 | 1 3/8 |
25 | SKTT-25M | 98.3 | 49.1 | 31.1 | 21.8 | 1 3/8 |
28 | SKTT-28M | 128.0 | 64.0 | 36.6 | 21.8 | 41mm |
30 | SKTT-30M | 140.0 | 69.9 | 39.6 | 26.2 | 46mm |
32 | SKTT-32M | 145.0 | 72.3 | 42.0 | 28.6 | 46mm |
38 | SKTT-38M | 168.0 | 84.0 | 49.4 | 33.7 | 55mm |
50 | SKTT-50M | 211.0 | 106.0 | 65.0 | 45.2 | 2 3/4 |
