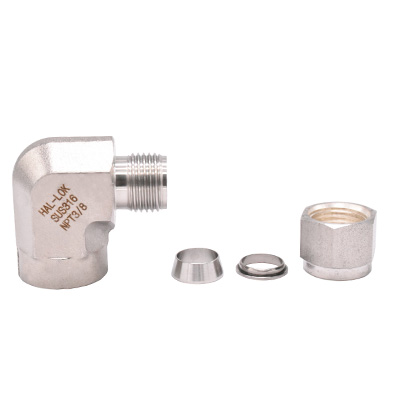

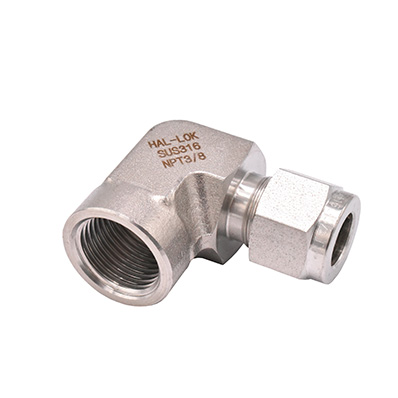

【型号规格】：SKTF-6-6N
【额定工作压力】：20MPA
【强度试验压力】：35MPA
【适用介质】：油、气、水
【介质温度】：0-300℃
原材料为锻打六角原棒制做，双卡套为硬化处理，螺帽镀银处理，具有连接牢靠、耐压能力高、耐温性，密封性和反复性好、安装检修方便、工作安全可靠等特点. 适用于石油、化工、食品、船舶、冶金、能源、生物制药、分析仪器、实验室、半导体等行业，能与国际品牌互通互换。规格齐全、可非标定制 材质：SS304、SS316、SS316L以及其他特殊材质. 螺纹：NPT、BSP、BSPT、UNF、ISO等 |  |

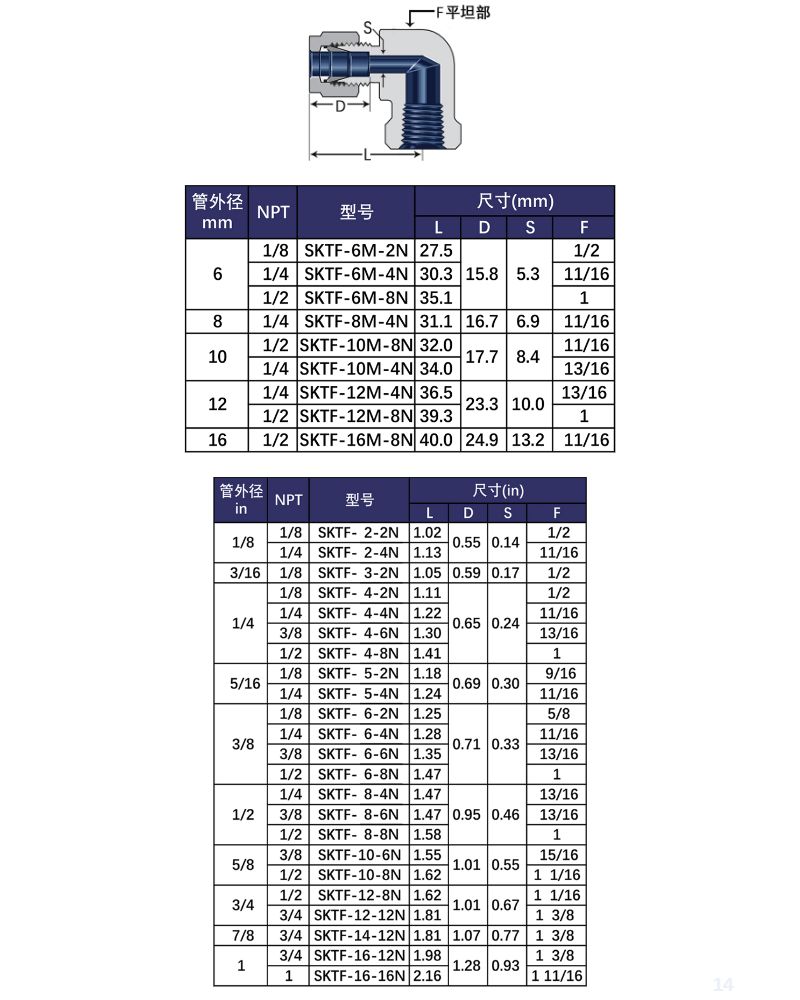

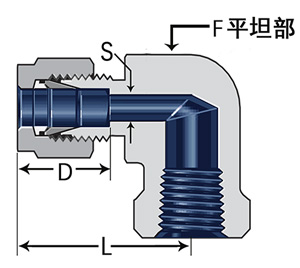

管外径 in. | NPT | 型号 | 尺寸,in | |||
|---|---|---|---|---|---|---|
L | D | S | F | |||
1/8 | 1/8 | SKTF-2-2N | 1.02 | 0.55 | 0.14 | 1/2 |
1/4 | SKTF-2-4N | 1.13 | 11/16 | |||
3/16 | 1/8 | SKTF-3-2N | 1.05 | 0.59 | 0.17 | 1/2 |
1/4 | 1/8 | SKTF-4-2N | 1.11 | 0.65 | 0.24 | 1/2 |
1/4 | SKTF-4-4N | 1.22 | 11/16 | |||
3/8 | SKTF-4-6N | 1.30 | 13/16 | |||
1/2 | SKTF-4-8N | 1.41 | 1 | |||
5/16 | 1/8 | SKTF-5-2N | 1.18 | 0.69 | 0.30 | 9/16 |
1/4 | SKTF-5-4N | 1.24 | 11/16 | |||
3/8 | 1/8 | SKTF-6-2N | 1.25 | 0.71 | 0.33 | 5/8 |
1/4 | SKTF-6-4N | 1.28 | 11/16 | |||
3/8 | SKTF-6-6N | 1.35 | 13/16 | |||
1/2 | SKTF-6-8N | 1.47 | 1 | |||
1/2 | 1/4 | SKTF-8-4N | 1.47 | 0.95 | 0.46 | 13/16 |
3/8 | SKTF-8-6N | 1.47 | 13/16 | |||
1/2 | SKTF-8-8N | 1.58 | 1 | |||
5/8 | 3/8 | SKTF-10-6N | 1.55 | 1.01 | 0.55 | 15/16 |
1/2 | SKTF-10-8N | 1.62 | 1 1/16 | |||
3/4 | 1/2 | SKTF-12-8N | 1.62 | 1.01 | 0.67 | 1 1/16 |
3/4 | SKTF-12-12N | 1.81 | 1 3/8 | |||
7/8 | 3/4 | SKTF-14-12N | 1.98 | 1.07 | 0.77 | 1 3/8 |
1 | 3/4 | SKTF-16-12N | 2.16 | 1.28 | 0.93 | 1 3/8 |
1 | SKTF-16-16N | 2.45 | 1 11/16 | |||
管外径 mm | NPT | 型号 | 尺寸,mm | |||
|---|---|---|---|---|---|---|
L | D | S | F( in.) | |||
6 | 1/8 | SKTF-6M-2N | 27.5 | 15.8 | 5.3 | 1/2 |
1/4 | SKTF-6M-4N | 30.3 | 11/16 | |||
1/2 | SKTF-6M-8N | 35.1 | 1 | |||
8 | 1/8 | SKTF-8M-4N | 31.1 | 16.7 | 6.9 | 11/16 |
10 | 1/2 | SKTF-10M-8N | 32.0 | 17.7 | 8.4 | 11/16 |
1/4 | SKTF-10M-4N | 34.0 | 13/16 | |||
12 | 1/4 | SKTF-12N-4N | 36.5 | 23.3 | 10.0 | 13/16 |
1/2 | SKTF-12M-8N | 39.3 | 1 | |||
16 | 1/2 | SKTF-16M-8N | 40.0 | 24.9 | 13.2 | 11/16 |
