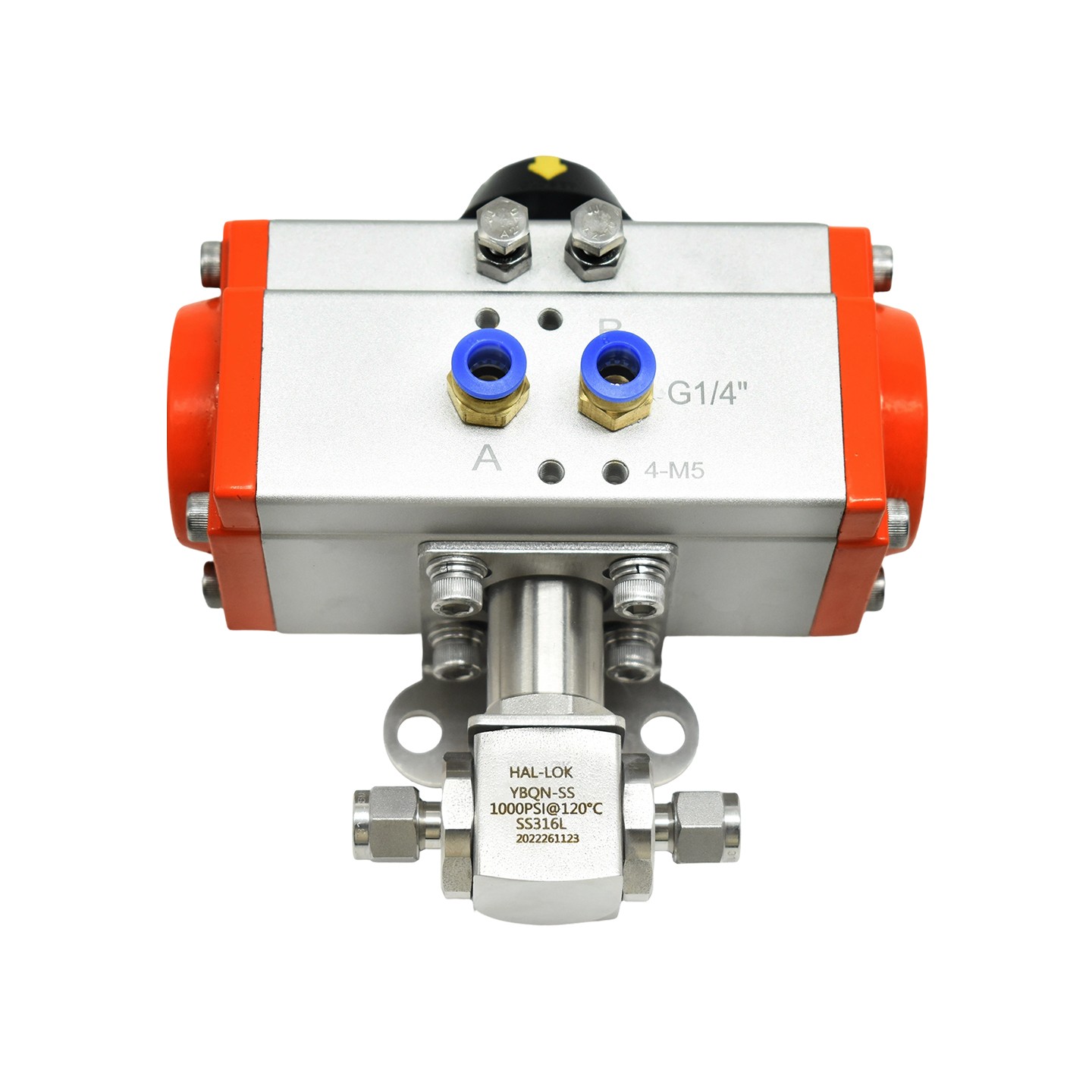

订购型号 （Order Model) | 管子外径 (OD) | 通径(DN) MM | 球阀与气动执行器外观尺寸图(Dimension Sheet) | ||||||
| A | B | D | E | G | H | F*L | |||
HL-YBQN-BV-2 | 1/8 | 2.3 | 62.6 | 50 | 19.5 | 83.2 | 49 | 26 | 46*109 |
HL-YBQN-BV-3M | 3MM | ||||||||
HL-YBQN-BV-4 | 1/4 | 4.8 | 66.6 | 50 | 19.5 | 83.2 | 49 | 26 | 46*109 |
HL-YBQN-BV-6M | 6MM | ||||||||
HL-YBQN-BV-6 | 3/8 | 4.8 | 70 | 50 | 19.5 | 83.2 | 49 | 26 | 46*109 |
HL-YBQN-BV-10M | 10MM | ||||||||
HL-YBQN-BV-8 | 1/2 | 9.5 | 83.8 | 50 | 33 | 116 | 79.5 | 36.5 | 73*153 |
HL-YBQN-BV-12M | 12MM | ||||||||
HL-YBQN-BV-4NF | NPT1/4内 | 9.5 | 64 | 50 | 33 | 116 | 79.5 | 36.5 | 73*153 |
HL-YBQN-BV-2NF | NPT1/8内 | 7.1 | 40 | 50 | 33 | 116 | 79.5 | 36.5 | 73*153 |
| HL-YBQN-BV-6NF | NPT3/8内 | 9.5 | 64 | 50 | 33 | 116 | 79.5 | 36.5 | 73*153 |
