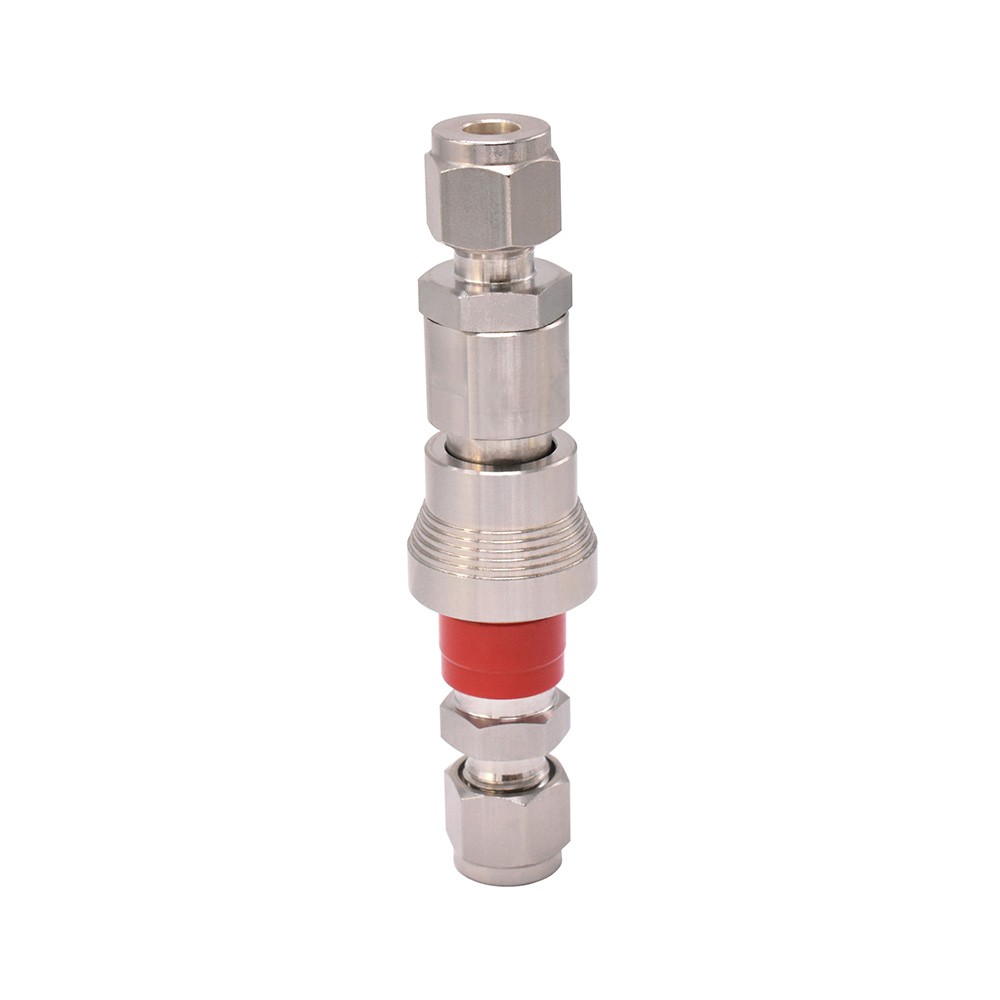

【型号规格】：KSH4-4
【额定工作压力】：50~3000psi
【强度试验压力】：35MPA
【适用介质】：气体、液体
【介质温度】：-20~120℃

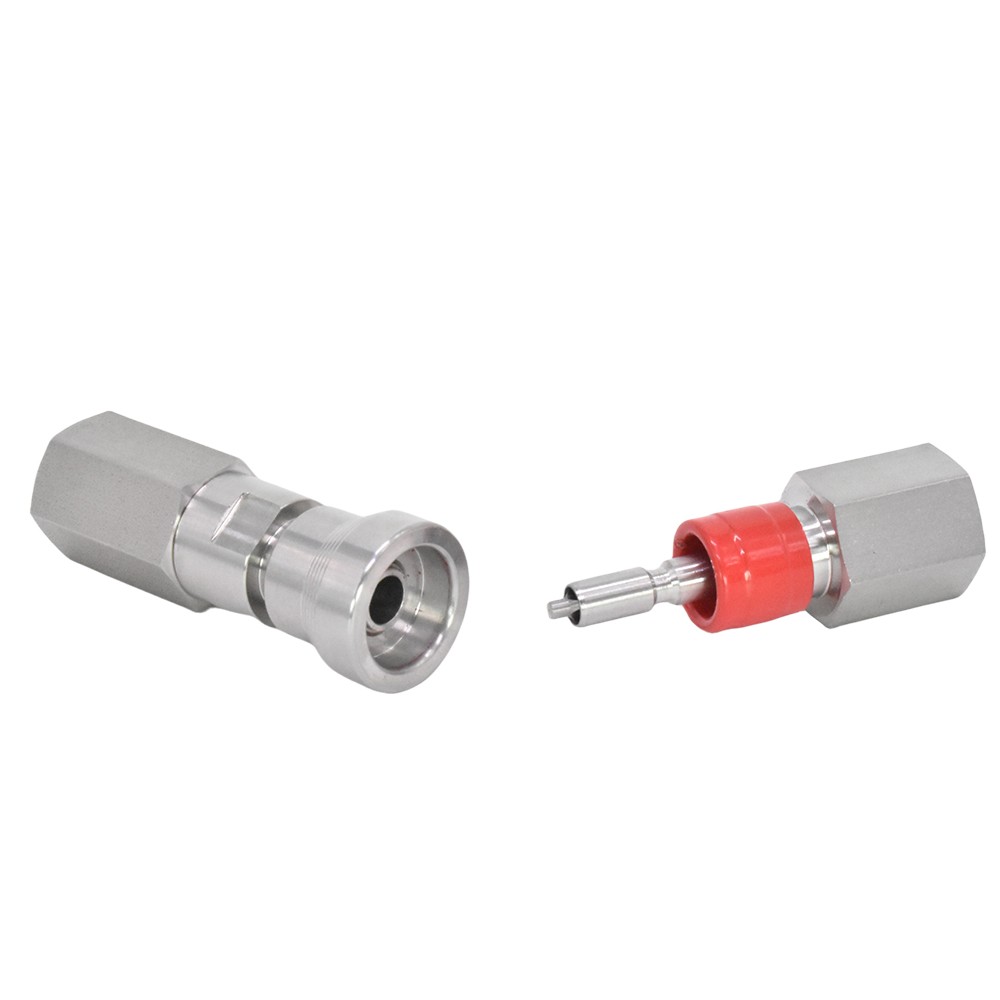

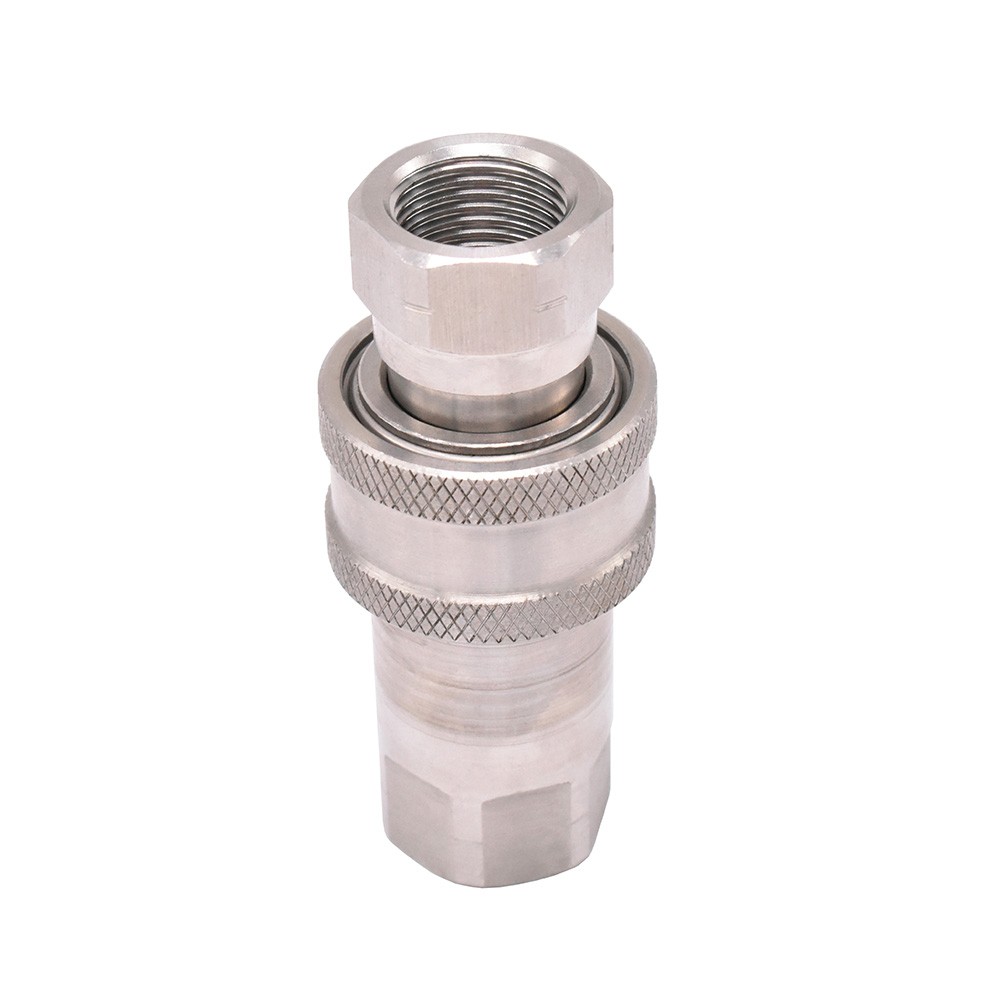

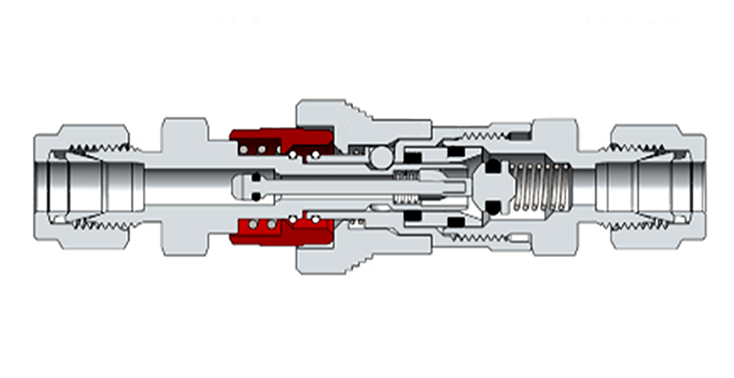

快速接头，是一种不需要工具就能实现管路连通或断开的接头。 无泄漏的O形圈密封可用于真空和压力系统，可与其他进行互换。推入式连接使操作快捷方便，大面积的锁定装置确保更牢固的夹住管茎。 全流量快速接头，不锈钢、碳钢和黄铜材质，光滑、开放式内腔，两端不带阀，使压降较小化，更容易清洁。 |  |

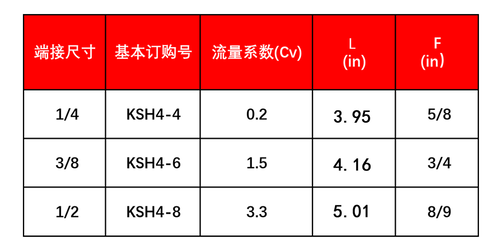

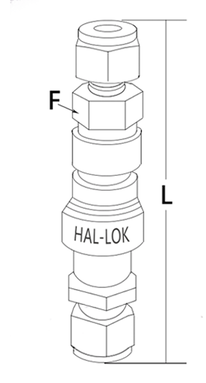

| 接头尺寸 | 基本 订购号 | 流量系数 SESO | F | L |
| 英制管 | ||||
| 1/8 in. | KSH4-2 | 0.08 | 5/8in. | 58.9mm |
| 1/4 in. | KSH4-4 | 0.03 | 5/8in. | 59.9mm |
| 3/8 in. | KSH4-6 | 1.0 | 3/4in. | 64.0mm |
| 1/2 in. | KSH4-8 | 2.4 | 7/8in. | 75.2mm |
| 公制管 | ||||
| 6mm | KSH4-6M | 0.3 | 16mm | 59.9mm |
8mm | KSH4-8M | 0.3 | 16mm | 60.7mm |
10mm | KSH4-10M | 1.0 | 19mm | 67.3mm |
| 12mm | KSH4-12M | 2.4 | 22mm | 75.2mm |

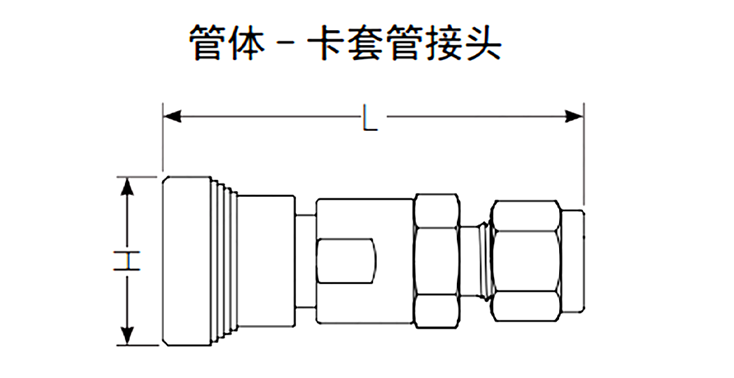

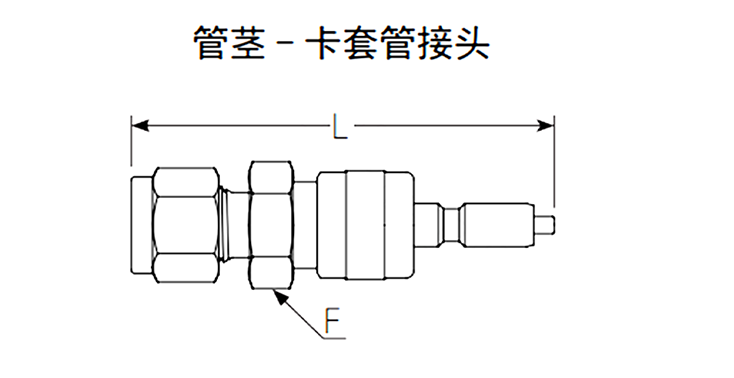

| 接头尺寸 | 基本 订购号 | 流量系数 SESO | F | L |
| 英制管 | ||||
| 1/8 | KSH5-2 | 0.08 | 57.4mm | 23.1mm |
| 1/4 | KSH5-4 | 0.03 | 58.4mm | 23.1mm |
| 3/8 | KSH5-6 | 1.0 | 65.5mm | 26.2mm |
| 1/2 | KSH5-8 | 2.4 | 78.5mm | 30.7mm |
| 公制管 | ||||
| 6mm | KSH5-6M | 0.3 | 58.4mm | 23.1mm |
8mm | KSH5-8M | 0.3 | 59.2mm | 23.1mm |
10mm | KSH5-10M | 1.0 | 68.1mm | 26.2mm |
| 12mm | KSH5-12M | 2.4 | 78.5mm | 30.7mm |
