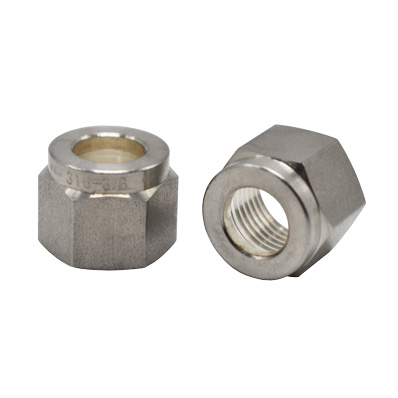

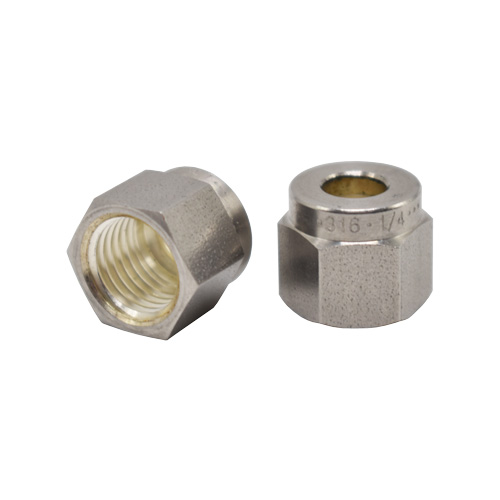

螺帽镀银处理，具有连接牢靠、耐压能力高、耐温性，密封性和反复性好、安装检修方便、工作安全可靠等特点. 适用于石油、化工、食品、船舶、冶金、能源、生物制药、分析仪器、实验室、半导体等行业，能与国际品牌互通互换。规格齐全、可非标定制 材质：SS304、SS316、SS316L以及其他特殊材质. |  |
管外径 in | 型号 | Dimensions,in | |
|---|---|---|---|
G | L | ||
1/8 | EN-2 | 7/16 | 0.47 |
3/16 | EN-3 | 1/2 | 0.47 |
1/4 | EN-4 | 9/16 | 0.50 |
5/16 | EN-5 | 5/8 | 0.53 |
3/8 | EN-6 | 1 1/16 | 0.56 |
1/2 | EN-8 | 7/8 | 0.69 |
3/4 | EN-10 | 1 | 0.69 |
7/8 | EN-14 | 1 1/8 | 0.69 |
1 | EN-16 | 1 1/4 | 0.81 |
11/4 | EN-20 | 1 7/8 | 1.25 |
11/2 | EN-24 | 2 1/4 | 1.50 |
2 | EN-32 | 3 | 2.06 |
管外径 mm | 型号 | Dimensions,mm | |
|---|---|---|---|
G | L | ||
2 | EN-2M | 12 | 11.9 |
3 | EN-3M | 12 | 11.9 |
4 | EN-4M | 12 | 11.9 |
6 | EN-6M | 14 | 12.7 |
8 | EN-8M | 16 | 13.5 |
10 | EN-10M | 19 | 15.1 |
12 | EN-12M | 22 | 17.4 |
14 | EN-14M | 25 | 17.4 |
15 | EN-15M | 25 | 17.4 |
16 | EN-16M | 25 | 17.4 |
18 | EN-18M | 30 | 17.4 |
20 | EN-20M | 32 | 17.4 |
22 | EN-22M | 32 | 17.4 |
25 | EN-25M | 38 | 20.6 |
28 | EN-28M | 46 | 30.6 |
30 | EN-30M | 50 | 32.7 |
32 | EN-32M | 50 | 34.4 |
38 | EN-38M | 60 | 40.6 |
50 | EN-50M | 75 | 52.3 |
